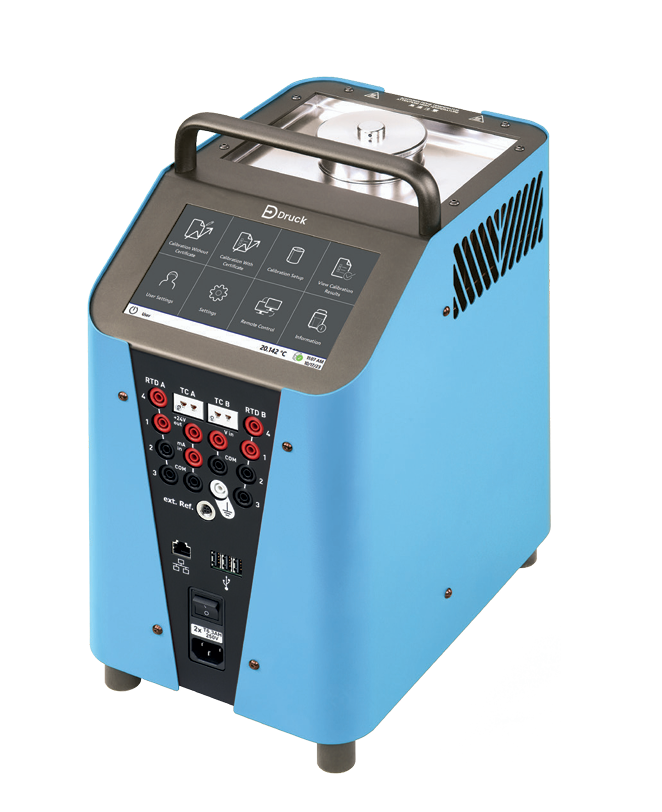

Druck PTC255i Integrated Measurement Temperature Calibrator (Room Temp to 255°C)
The PTC255i is a premium, high-performance temperature calibrator offering four calibration modes in one instrument (dry block, calibration bath, infrared, and surface).
Qty Available: 0
Druck PTC255i combines advanced temperature control technology with a user-friendly interface, ensuring quick and stable temperature performance. It supports multiple sensor types, including RTDs, thermocouples, and temperature transmitters, making it a true multi-function calibrator. It delivers ultra-fast stabilization, high accuracy, and superior stability across the broad range of Room Temperature to 255°C. The unit is controlled via a 7-inch touchscreen with intuitive menus, and supports automatic generation of calibration certificates.
PTC255i standard Kit included:
- Insert Air shield 1x Ø2.0, 1x Ø3.3, 3x Ø3.5, 2x Ø4.5, 1x Ø6.0 mm (Aluminium)
- External Reference Sensor (-55 to 255 °C) straight version
- Tub insert; (bath) Ø60 mm
- Universal plug and lead set
- Banana plugs (only on PTC255i model)
- Insert exchange tongs
- Ethernet Cable
- Liquid Bath work cover
Please feel free to discuss with us about your product requirement. Instrowest can help you with product Supply, Installation and Calibration. Contact us Now
- Temperature range: Room temperature to 255 °C
- Accuracy: ±0.08 °C
- Stability: ±0.010 °C
- Power supply: 110...115 V ac, 60 Hz / 230 V ac, 50 Hz, Protective conductor (PE) needed
- Power consumption: Approx. 1100 W
- Hysteresis: ±0.010 °C
- Interfaces: Ethernet, 3 x USB
- Connection type: 2-, 3-, 4-wire technology
- Input Connection: 2x thermocouple socket (mini)
- Input Measuring range: 0 to 24 mA, 0 to 12 VDC
- RTD Resistance range:
- PT100: 0…400 Ω
- PT1000: 0…4000 Ω
- Thermocouple Resistance range: -10 to 100 mV
