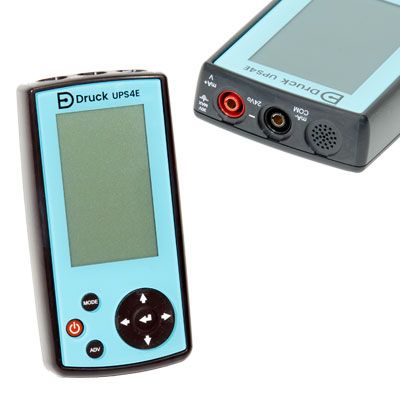

Druck UPS4E Loop Calibrator
The UPS4E is a rugged and extremely compact loop calibrator to measure or source 0 to 24 mA with an accuracy 0.01% of reading+1 count
Qty Available: 0
The UPS4E is a rugged and extremely compact loop calibrator, designed to be operated with one hand. It is an essential tool for loop testing/powering process control mA loops and mA devices. Perfect for instrument maintenance with an easy-to-read display and simple-to-use time saving features including step, span and valve check.
The UPS4E utilises the most advanced electrical calibration technology to create a dependable, cost-effective loop calibrator.
Features and benefits
- • Measure or source 0 to 24 mA
• Accuracy 0.01% of reading+1 count
• Dual mA and % readout, linear or flow
• Step, span check, valve check, ramp.
• 30 VDC measurement and continuity check
• 100,000 datalog points
• In built 250 Ω resistor for supporting HART operation
• 24 V DC loop power with mA measure or source mode
• Auto shutdown to conserve battery life
The UPS4E is supplied with a quick start & safety guide, a set of alkaline batteries, test leads, a USB cable and a calibration certificate.
If you would like to discuss your requirement or you require a price for the bulk quantity, please get in touch with our team at sales@instrowest.com.au
- • Measure or source 0 to 24 mA
• Accuracy 0.01% of reading+1 count
• Dual mA and % readout, linear or flow
• 30 VDC measurement and continuity check
• 100,000 datalog points
• In built 250 Ω resistor for supporting HART operation
• 24 V DC loop power with mA measure or source mode
HART resistor: 250 Ohm, optional loop resistor to support external HART communications
Connectivity: USB Type C connection to access data log and for firmware update.
Safe Area variant: Device can be powered through any commercially available certified USB adapter.
Please see the "Document" tab for the technical datasheet.
