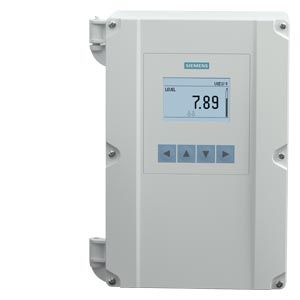

SITRANS LT500 universal level controller - 100-230 V AC

Overview

SITRANS LT500 is the next evolution of level, flow, and pump controllers for radar and ultrasonic transmitters, transducers – 100-230 V AC

$1,875.90 Price including GST: $2,063.49

In stock

Qty Available: 2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

SITRANS LT500 universal level controller: continuous, non-contact, for liquids, slurries, and solids. Monitors level, volume, and volume flow, for virtually any application in a wide range of process industries. Product Type: MultiRanger Feature set: Level, Volume & Flow (Mcerts class 2 certified) Sensor input type: Ultrasonic transducer input(s) Number of measurement points: Single point version Relay output: 6 relays (4 Form A, 2 Form C), 250 V AC Mounting, enclosure design: Wall mount, 4 entries, M20 cable glands included Type of protection: Ordinary Locations/General Purpose (Non-Ex), cCSAus, cULus, FM, CE, UKCA, RCM. EAC Removable data storage: Included (8GB micro SD) . . Input Voltage: 100 ... 230 V AC Communication: 4 ... 20 mA, active output, with HART

Technical Specification

Model: SITRANS LT500 - universal level controller
Enclosure Display Option: Comes with Display
Input Voltage: 100-230 V AC
Cable Entry: 4 x Cable Inlets with M20 Cable Glands
Number of Measuring Points: Single point system (includes one transducer input, one mA output and one external temperature sensor input)
Communications & I/O: HART, 4 ...20 mA, transducer Inputs & 6 x Relays
Approvals: General Purpose (Non-Ex), cCSAus, cULus, FM, CE, UKCA, RCM. EAC

Product Video

Documents

Universal Level Controller SITRANS LUT500 series - Datasheet
