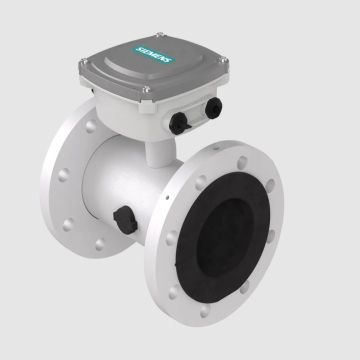

Siemens FMS500 Magnetic Flow Sensor – DN250, AS4087,PN16

Overview

The Siemens SITRANS FMS500 Magnetic Flow Sensor is DN250, 10 Inch diameter an electromagnetic flow sensor with AS 4087 PN 16 Flanges Process connection.

$4,248.49 Price including GST: $4,673.34

In stock

Qty Available: 0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The SITRANS FMS500 Magnetic Flow Sensor with DN250 provides accurate and reliable measurement of conductive liquids in applications such as water abstraction, treatment, and distribution. Built for durability and performance, this flow sensor ensures high measurement accuracy and long-term stability in challenging environments.

The FMS500 sensor offers high-accuracy factory calibration and is designed for seamless integration with Siemens transmitters such as the FMT020 for complete flow measurement systems.

Please feel free to discuss with us about your product requirement. Instrowest can help you with product Supply, Installation and Calibration. Contact us Now

Technical Specification

Diameter: DN 250, 10 inch

Process connection: AS 4087 PN 16 flanges

Flange material: Carbon steel ASTM A 105 with corrosion-resistant coating acc. to EN ISO 12944 grade C4

Liner Material: EPDM

Electrodes: Hastelloy C276 electrodes

Transmitter: Sensor for remote transmitter (order transmitter separately)

Terminal Enclosure: Polyamide, M20x1.5 conduit entries

Accuracy: ±0.2% of actual value (DN 250–600 / 10"–24")

Compliance: AS/NZS 4020 Drinking Water Approvals

Product Video

Documents

SITRANS F M Transmitter FMS500 Datasheet
