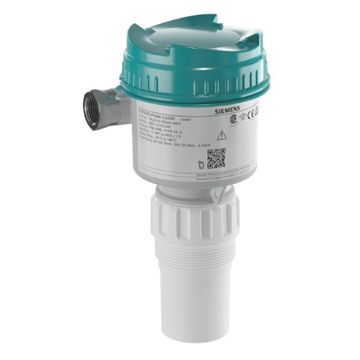

Probe LU240 With display and blind lid 200 - 6000 mm Range
SITRANS Probe LU240 ultrasonic level transmitter - Measurement range/ wetted parts: 200 ... 6000 mm With display blind lid.
Qty Available: 0
Siemens SITRANS Probe LU240 ultrasonic level transmitter with HART, 4 ... 20 mA is ideal for level, volume, and volume flow measurements. Works with liquids, slurries, and bulk materials up to 12 meters (40 feet).
Communications: HART (4 ... 20 mA) level, volume
Ingress protection: IP68, TYPE6
Measurement range/ wetted parts: 200 ... 6000 mm (7.87 ... 236.22 inch), ETFE
Process connection: 2" NPT [(Taper), ASME B1.20.1]
Please feel free to discuss with us about your product requirement. Instrowest can help you with product Supply, Installation and Calibration. Contact us Now
Communications: HART (4 ... 20 mA) level, volume
Ingress protection: IP66, IP68, TYPE 4X, 6
Measurement range/ wetted parts: 200 ... 6000 mm (7.87 ... 236.22 inch), ETFE
Process connection: 200 ... 6000 mm (7.87 ... 236.22 inch), ETFE
Non wetted parts: Plastic (PBT/PC material)
Enclosure
Type of protection: Non Ex (ordinary locations) cCSAus, CE, RCM
Electrical connections/ cable entries: 2 x M20 x 1.5 (one general purpose plastic cable gland and one plastic blocking plug provided)
Local HMI: With display (blind lid of PBT/PC material)
Approvals: ATEX, SABS, IECEx - 1G Ex ia IIC T4 Ga
1411102 | Siemens 2” BSPT Locknut |
$24.59
|
|
||
1411101 | Siemens Adapter 3” ANSI to 2” BSPT |
$223.93
|
|
||
1021104 | Instrowest Custom SS ID Tag |
$50.00
|
|
||
1070103 | Siemens Sitrans RD100 Display M 1/2inch |
$777.47
|
|
||
1070101 | Siemens Sitrans RD200 - 85-265 VAC display with 24V supply |
$676.55
|
|
||
1070102 | Siemens Sitrans RD200 - 85-265 VAC display with 2 relay outputs and 24V supply |
$849.42
|
|
||
1070104 | Siemens Sitrans RD200, 85-265 VAC display with 4-20mA output and 24v supply |
$957.35
|
|
||
1321267 | Siemens RD150 Remote Display |
$1,181.12
|
|
||
1421233 | SITRANS AW050 Bluetooth Adaptor |
$134.26
|
|
- 1321235 SITRANS Probe LU240 ultrasonic level transmitter - display and blind lid$1,660.43
Price including GST: $1,826.47Siemens SITRANS Probe LU240 ultrasonic level transmitter with display and blind lid.
- 1321236 SITRANS Probe LU240 ultrasonic level transmitter - clear lid of PC material$1,707.75
Price including GST: $1,878.53Siemens SITRANS Probe LU240 ultrasonic level transmitter with clear lid of PC material.
- 1321237 SITRANS Probe LU240 ultrasonic level transmitter - IEC Ex Approval$2,075.32
Price including GST: $2,282.85Siemens SITRANS Probe LU240 ultrasonic level transmitter with display, clear lid of PC material and IEC Ex Approval
- 1321242 Probe LU240 With display and clear lid 200 - 12000 mm Range$1,848.86
Price including GST: $2,033.75SITRANS Probe LU240 ultrasonic level transmitter - Measurement range/ wetted parts: 200 ... 12000 mm With display clear lid.
