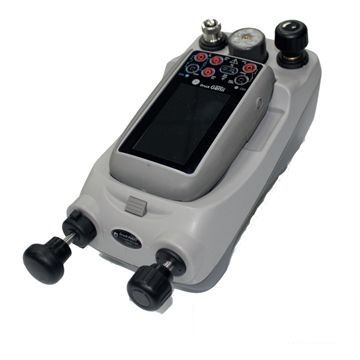

Druck DPI620PC-H Pressure Calibrator Kit (with HART Communicator)

The Druck DPI 620 PC, fully self-contained pressure test, and calibration system combine world-class pressure measurement and generation, signal measurements, loop power. With accurate interchangeable pressure modules and available in Safe and Hazardous Area approvals. Incorporating 4Sight2 calibration software provides you with a total calibration solution.

Safe Area packages:
• Pressure Calibrator (with HART)
• Pressure Module 2, 7 or 20 bar (30, 100, 300 psi/ 200 kPa, 700 kPa or 2 MPa) options
• Pneumatic pressure generating station vacuum up to 20 bar (300 psi/ 2 MPa)
• Pressure relief valve
• 4Sight2 standard calibration software

Features:

• Capabilities: electrical, frequency, temperature, and pressure
• Pressure modules to expand your pressure range
• Pressure relief valve to protect pressure module from overpressure

Each DPI620PC package is supplied with a DPI620G (HART Communicator), Pressure Module (range as per above), PV621G Pressure generation base with G1/8 female and 1/8 NPT female adaptors, carry strap. Pressure relief valve, 4Sight2 standard calibration software. Rechargeable lithium polymer battery, universal mains charger, 300 VAC true rms measurement probe, test leads, calibration certificate and quick reference guide.

If you would like more information please feel free to discuss your requirements with one of our technicians. Contact us Now
