Bulk Type 500 Instrument Enclosure

Overview

The enclosure is made from a single sheet of Polyester Resin re-enforced with hot-pressed fiberglass. 460mm (W) x 410mm (D) x 490mm (H).

$692.48 Price including GST: $761.73

In stock

Qty Available: 0

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

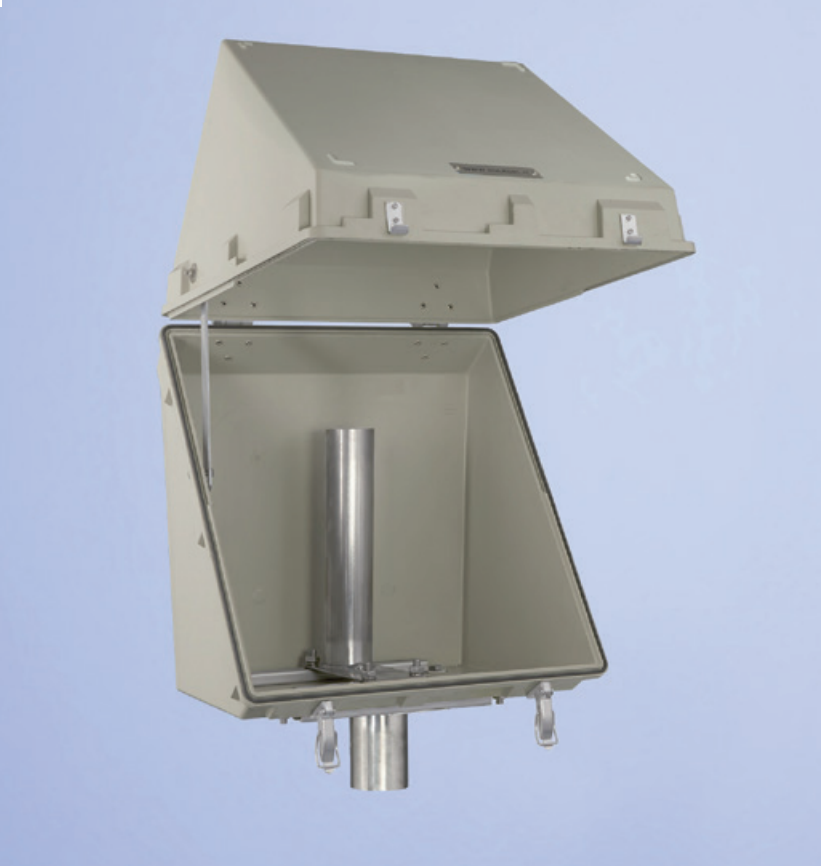

A sealed instrument enclosure offering complete protection for your critical instruments. The enclosure is made from a single sheet of Polyester Resin re-enforced with hot-pressed fibreglass. This enclosure is self-extinguishing, UV resistant & IP66 Rated. With a range of mounting options (see Associated products).

External dimensions: 460mm (width) x 410mm (depth) x 490mm (height)
Minimum thickness: 5 mm

Please feel free to discuss with us about your product requirement. Instrowest can help you with product Supply, Installation and Calibration. Contact us Now

Technical Specification

• External dimensions: 460mm (width) x 410mm (depth) x 490mm (height)
• Minimum thickness: 5 mm
• Weight: 7.50kg (without accessories)
• Hinges, clasps and lid propstay made in stainless steel
• Gasket made in EPDM
• Light grey colour
• Working temperature range: -40°C + 100°C
• Hardly inflammable and self-extinguishing
• Resistant to most corrosive types of industrial environments, acids and alkalis
• Not absorption of hydrocarbons
• High structural strength
• Resilient and mechanical double seal system

Product Video

Documents

Bulk Sunshade Catalouge

Accessories

Associated products

1021121	Bulk Enclosure Internal Vertical Instrument Stand	$214.18 Price including GST: $235.60
1021122	Bulk Enclosure Internal Horizontal Instrument Stand	$254.95 Price including GST: $280.45
1021123	Bulk Internal Instrument Mounting Plate (Small)	$173.42 Price including GST: $190.76
1021124	Bulk Enclosure Mount - Rear	$184.53 Price including GST: $202.98
1021125	Bulk Enclosure Bottom Mounted Bracket	$184.53 Price including GST: $202.98
